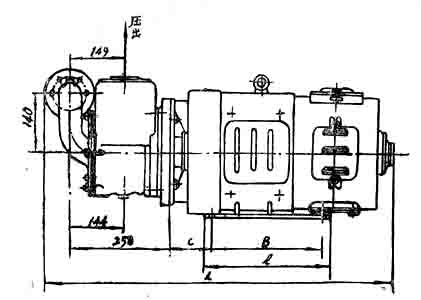

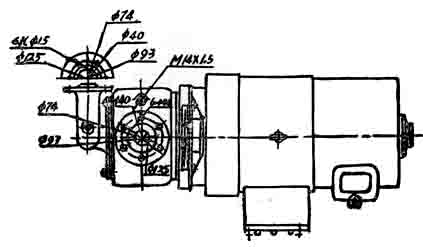

CWX型泵外形尺寸表
Table of outer-shaped
dimensions for pumps model CWX
泵型號
Model Of
pump
|
電動機(jī)型號
Mode of motor
|
符號尺寸
Symbol Dimension
|
A
|
B
|
C
|
H
|
L
|
h
|
1.5 CWX-4
|
Z2C-32(D2/T2)
Y112M-2H(B35)
|
225
190
|
260
140
|
74.5
70
|
150
112
|
790
661
|
352.5
315
|
1.5 CWX-2
|
Z2C-22(D2/T2)
Y90L-2H(B35)
|
200
140
|
205
125
|
73
56
|
140
90
|
725
606
|
342.5
293
|
泵型號
Modol of
pump
|
電動機(jī)型號
Modol of motor
|
符號尺寸
Symbol Dimension
|
l
|
l1
|
l2
|
l3
|
n
|
S
|
1.5 CWX-4
|
Z2C-32(D2/T2)
Y112M-2H(B36)
|
290
190
|
270
245
|
455
320
|
305
190
|
4
4
|
15
12
|
1.5 CWX-2
|
Z2C-22(D2/T2)
Y90L-2H(B35)
|
240
155
|
240
180
|
395
260
|
260
155
|
4
4
|
15
10
|
|
