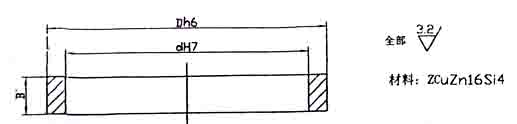

密封環外形尺寸表
|
序號 |
泵型號 |
Dh6 |
dH7 |
B |
序號 |
泵型號 |
Dh6 |
dH7 |
B |
|
1 |
32CWL-4 |
65 |
55 |
15 |
15 |
65CWL-6 |
98 |
82 |
15 |
|
2 |
32CWL-3 |
65 |
55 |
15 |
16 |
80CWL-14 |
105 |
90 |
15 |
|
3 |
40CWL-5 |
65 |
55 |
15 |
17 |
80CWL-11 |
110 |
95 |
15 |
|
4 |
40CWL-4 |
65 |
55 |
15 |
18 |
80CWL-8 |
110 |
95 |
15 |
|
5 |
40CWL-3 |
75 |
65 |
15 |
19 |
80CWL-6 |
110 |
95 |
15 |
|
6 |
50CWL-6 |
70 |
60 |
12 |
20 |
80CWL-5.5 |
120 |
105 |
15 |
|
7 |
50CWL-4.5 |
80 |
65 |
15 |
21 |
100CWL-18 |
115 |
100 |
15 |
|
8 |
50CWL-4 |
75 |
65 |
15 |
22 |
100CWL-14 |
120 |
105 |
15 |
|
9 |
50CWL-8 |
80 |
70 |
12 |
23 |
100CWL-11 |
125 |
110 |
15 |
|
10 |
50CWL-7 |
90 |
75 |
15 |
24 |
1OOCWL-8 |
120 |
105 |
15 |
|
11 |
50CWL-5 |
85 |
75 |
12 |
25 |
100CWL-6 |
125 |
110 |
17 |
|
12 |
50CWL-3.5 |
90 |
75 |
15 |
26 |
150CWL-18 |
165 |
150 |
17 |
|
13 |
65CWL-11 |
95 |
80 |
15 |
27 |
200CWL-12 |
200 |
180 |
15 |
|
14 |
65CWL-8 |
95 |
80 |
15 |
28 |
200CWL-18 |
205 |
185 |
15 |
1．密封環2．泵體3．葉輪4．葉輪螺母5．泵后蓋6．軸7．軸套8．軸承蓋9．托架10．泵聯軸器11．電機聯軸器
