型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚(yáng)程 Head m |
轉(zhuǎn)速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
200WQ300-10-18.5 |
φ200 |
300 |
10 |
1450 |
18.5 |
72 |
480 |
|
200WQ250-15-18.5 |
φ200 |
250 |
15 |
1450 |
18.5 |
72 |
480 |
|
200WQ400-10-22 |
φ200 |
400 |
10 |
1450 |
22 |
76 |
500 |
|
200WQ310-13-22 |
φ200 |
310 |
13 |
1450 |
22 |
62 |
500 |
|
200WQ300-15-22 |
φ200 |
300 |
15 |
1450 |
22 |
73 |
500 |
說明：JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ autostirring submersible
sewage pump are identical to those of model WQ submersible sewage pump (see the
table above), see the next page for the out-form dimensions.
|

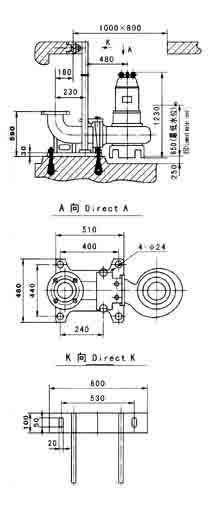

自動耦合式安裝
Auto-coupling
installation
|

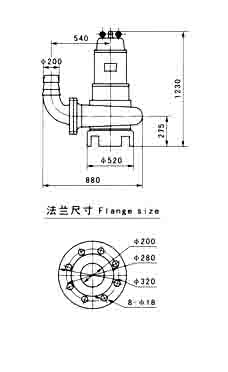

軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進(jìn)行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ
auto-stirring sewage pump．
|
|
型號Model |
H |
A |
B |
C |
|
200WQ300-1O-18.5 |
1350 |
530 |
1200 |
780 |
|
200WQ250-15-18.5 |
1350 |
530 |
1200 |
780 |
|
200WQ40-1O-22 |
1500 |
600 |
1300 |
850 |
|
200WQ310-13-22 |
1500 |
600 |
1300 |
850 |
|
200WQ300-15-22 |
1500 |
600 |
1300 |
850 |
