型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
100WQ100-25-11 |
φ100 |
100 |
25 |
1450 |
11 |
66 |
270 |
|
100WQ70-22-11 |
φ100 |
70 |
22 |
1450 |
11 |
59 |
270 |
|
100WQ50-35-11 |
φ100 |
50 |
35 |
1450 |
11 |
67 |
270 |
|
100WQ87-28-15 |
φ100 |
87 |
28 |
1450 |
15 |
68 |
300 |
|
100WQ100-30-15 |
φ100 |
100 |
30 |
1450 |
15 |
63 |
300 |
|
100WQ100-35-18.5 |
φ100 |
100 |
35 |
1450 |
18.5 |
65 |
380 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ autostirring submersible
sewage pump are identical to those of model WQ submersible sewage pump (see the
table above), see the next page for the out-form dimensions.
|

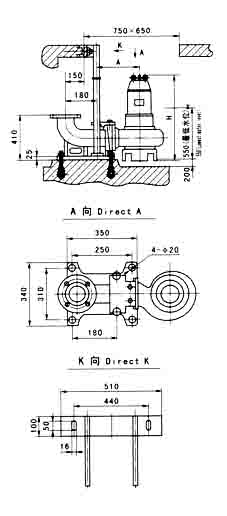

自動耦合式安裝
Auto—coupling
installation
|
軟管移動式安裝
Hose movable
installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ
auto-stirring sewage pump．
|
|

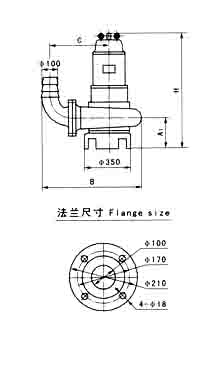

型號Model |
H |
A |
A1 |
B |
C |
|
100WQ100-25-11 |
1130 |
425 |
250 |
920 |
600 |
|
1OOWQ70-22-11 |
1130 |
425 |
250 |
920 |
600 |
|
100WQ50-35-11 |
1130 |
425 |
250 |
920 |
600 |
|
100WQ87-28-15 |
1130 |
425 |
250 |
920 |
600 |
|
100WQ100-30-15 |
1130 |
425 |
250 |
920 |
600 |
|
100WQ100-35-18.5 |
1350 |
470 |
240 |
1000 |
640 |
